Conventional Horizontal |
|
ProAuto™ Vertical |

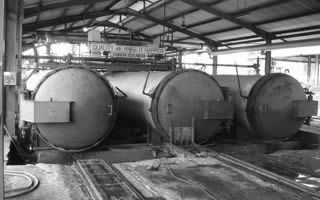

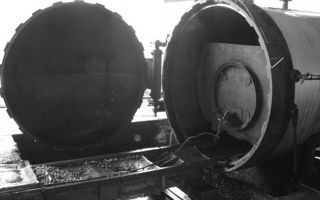

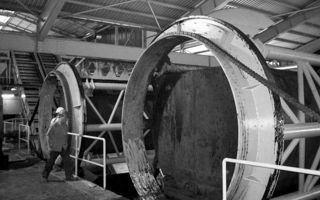

Steel pressure vessels in horizontal configuration occupy a large ground area proportional to the cyclinder's length and diameter. |
 |

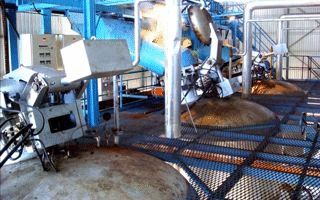

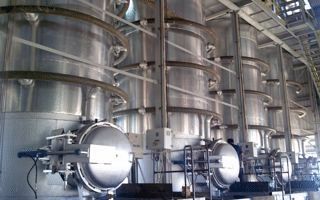

Steel pressure vessels in vertical configuration occupy a relatively small ground area. |

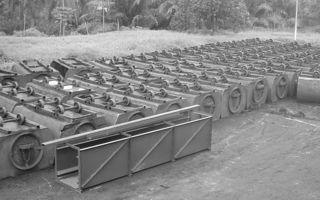

Requires a large number of steel cages (~USD4,000 per cage) and rail tracks to transfer FFB from loading ramp to the steriization station. |
 |

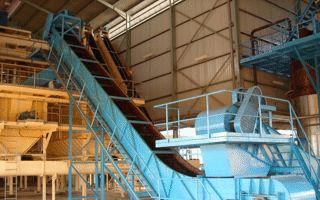

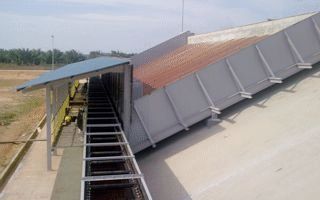

No cages required. FFB are directly transfered from loading ramp to the sterilizer by conveyor. |

FFB handling involves a lot of equipments like tipper with pit, conveyor, transfer carriage, winch, indexer, etc. |
 |

FFB handling is simple. FFB are fed into the sterilizer by conveyor directly from loading ramp and discharging is automated. |

High oil losses resulted from spilled fruits during loading to cages, transfer to sterilizers, from sterilizer to thresher, oil dripping from cages and sterilizer condensate exhaust. |
 |

No spilling and dripping. Oil loss during transfer fruit is minimized. |

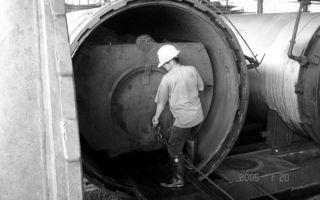

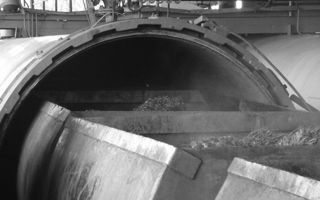

Discharging of sterilized fruit is labour intensive.
|
 |

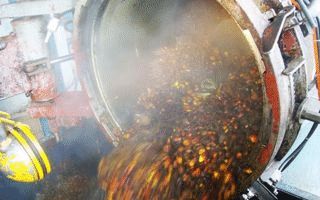

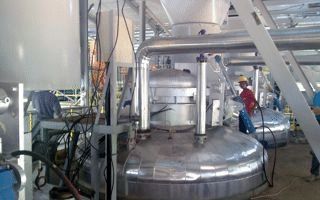

Sterilized fruit is discharged via internal auger. |

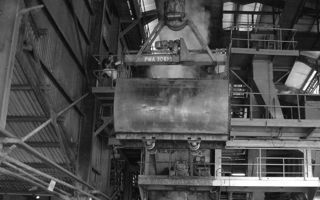

Another difficult handling using crane. |
 |

Sterilized fruit is just conveyed up. |

Requires a lot of manpower (>5 men) to operate due to its difficulty and multiple machines. Satety is a concern. |
 |

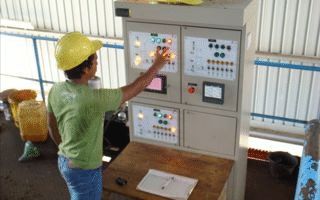

Less manpower required because the system is automated, simple and safe. |
|
|
|
 |
|
